Dasbob

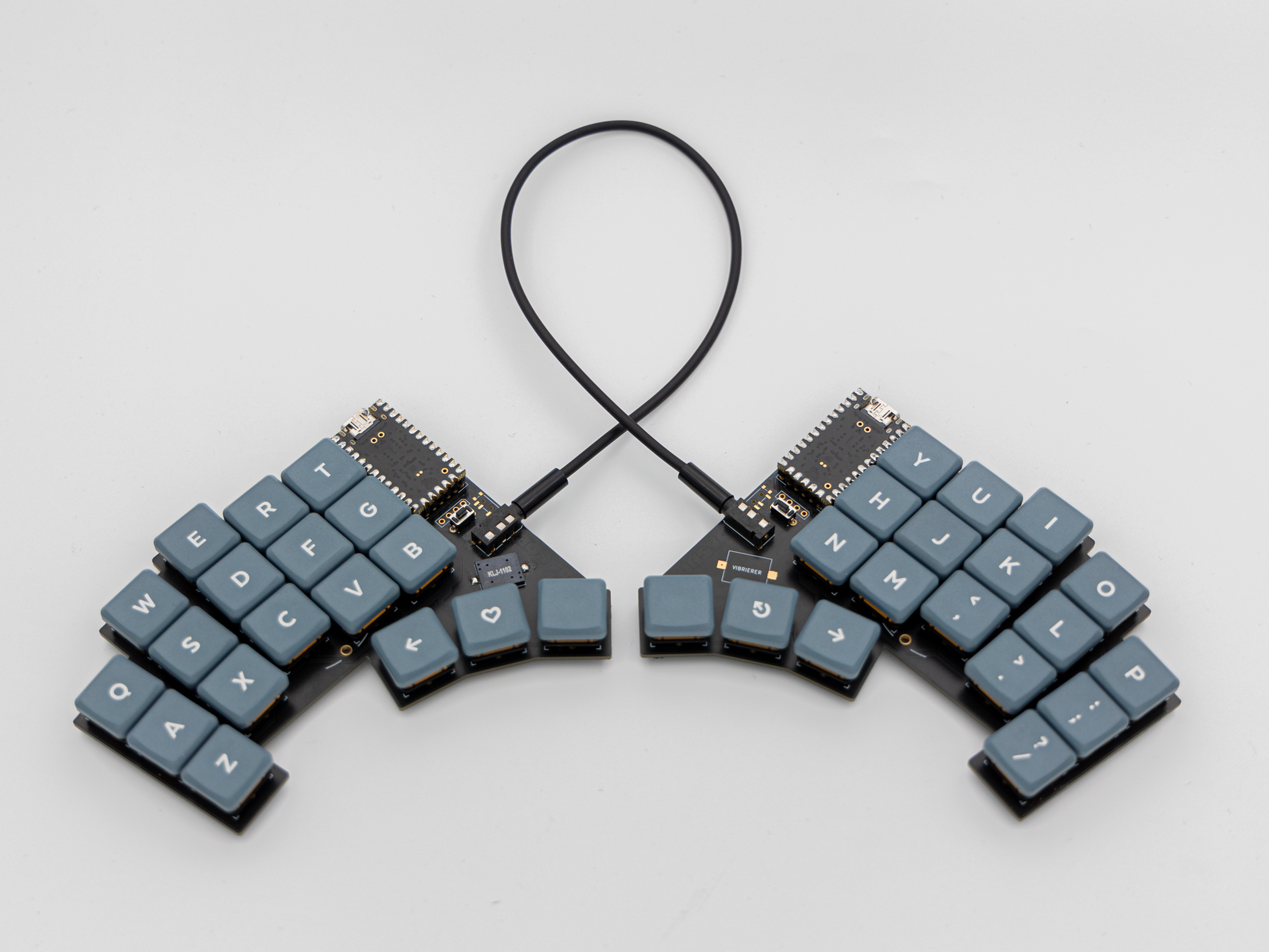

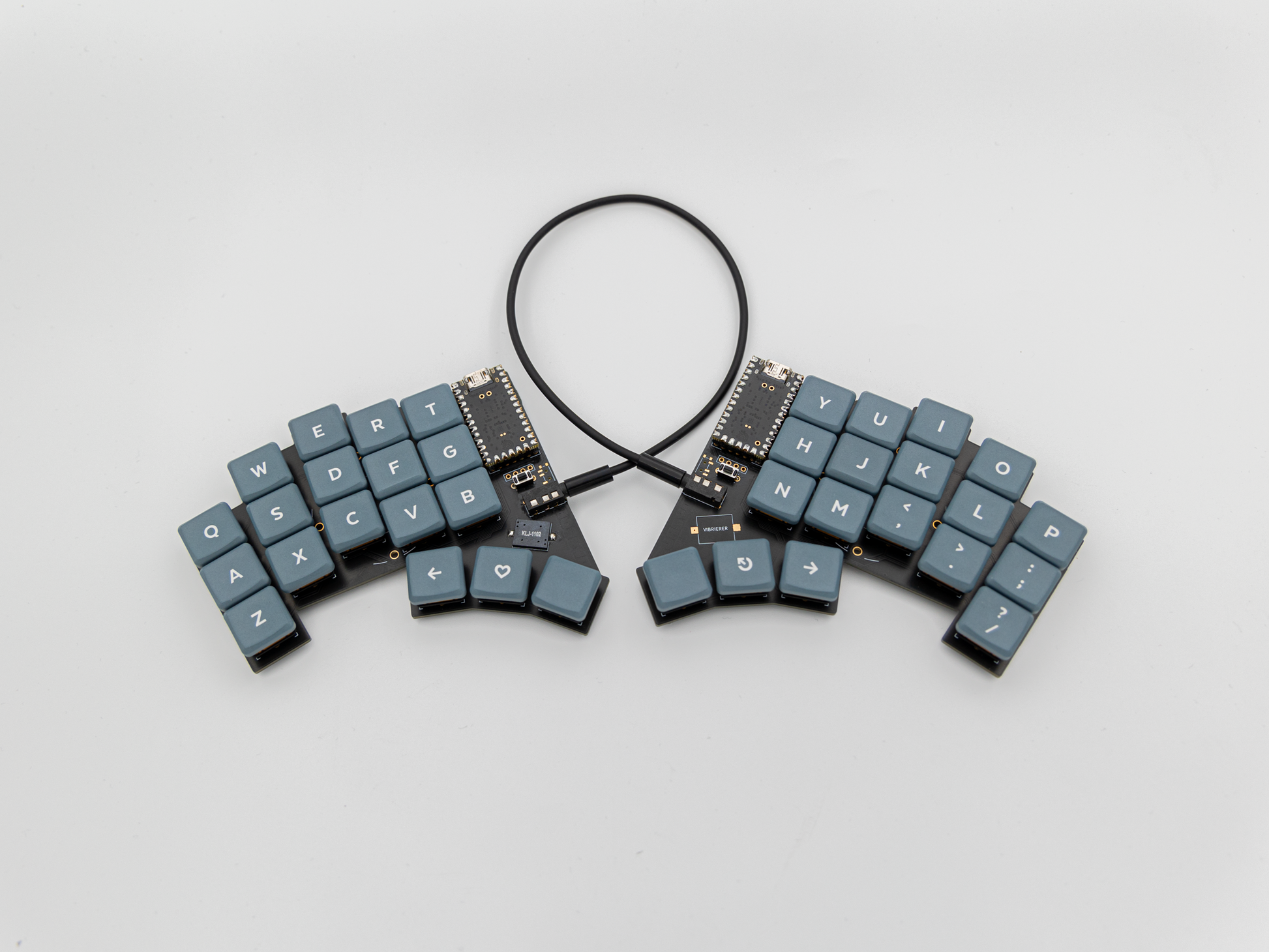

DASBOB, is an amazing 36 keys diodeless split choc keyboard, designed by Marco (GroooveBob). If you are looking for the perfect split keyboard for the DIY beginner, look no further - this keyboard requires very little soldering.

It is compatible with ProMicro based controllers and even includes an optional buzzer to make your experience even more exciting!

Github

Instructions

PCB Trace View

Included contents Kit:

• 2 PCBs
• 8 rubber feet
• 2 Reset Buttons
• 40 Kailh Choc Hotswap Sockets
• 2 TRRS jacks
• 1 TRRS cable

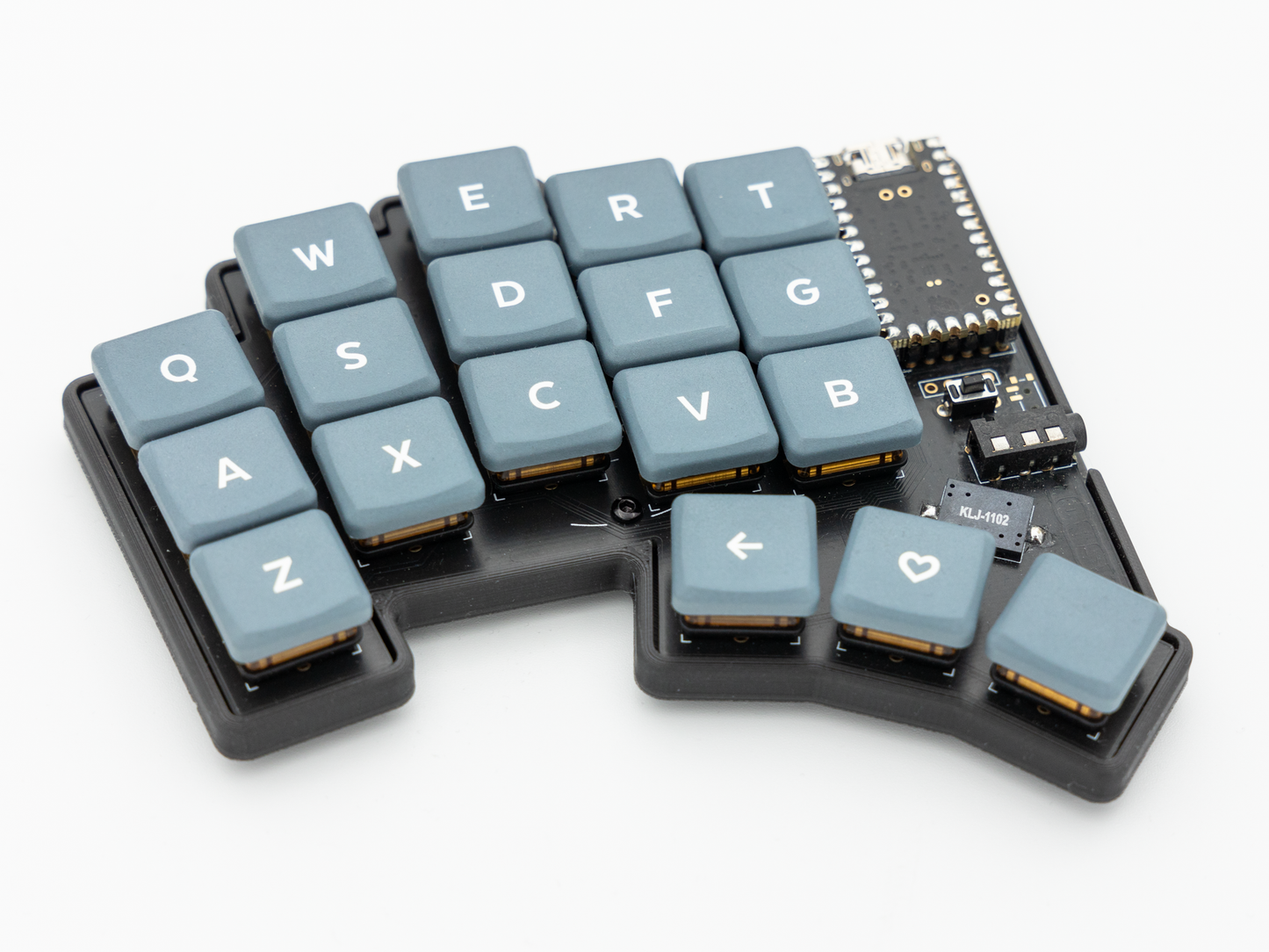

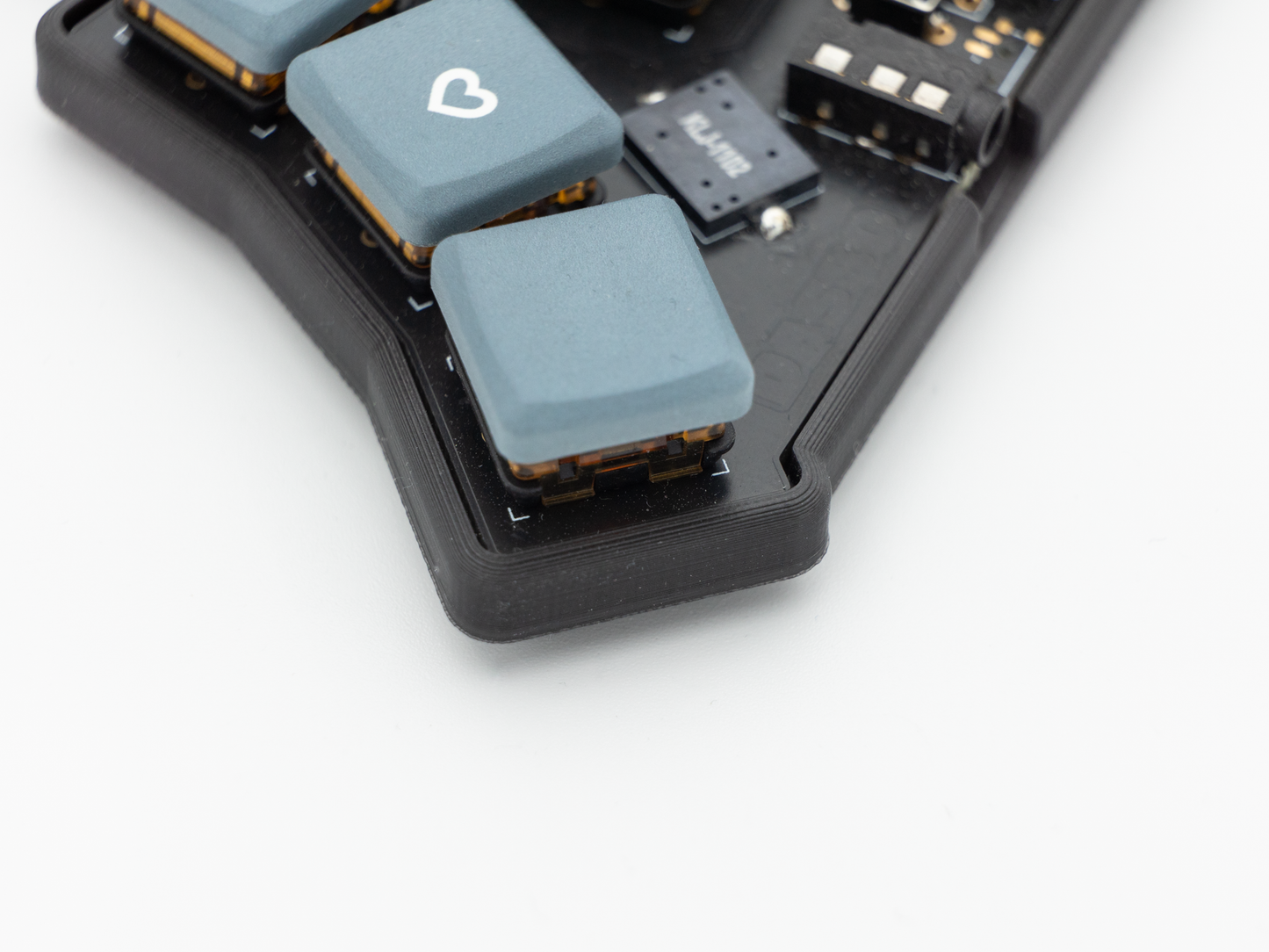

Included contents Case:

• 2 x FDM printed case halfes with heat set inserts installed
• 8 x screws

Not included:

• 2 Helios rp2040 microcontrollers
• mounting for microcontrollers (Solder Pins or IC-Sockets and MillMax Pins)
• 36 x Keycaps and switches

Optional:

• Case
• Buzzer
• OLED

Firmware:

QMK

VIAL

KMK
