LeSTMovoz

LeSTMovoz by JLW the rebirth of lesovoz with an integrated USB and STM chip!

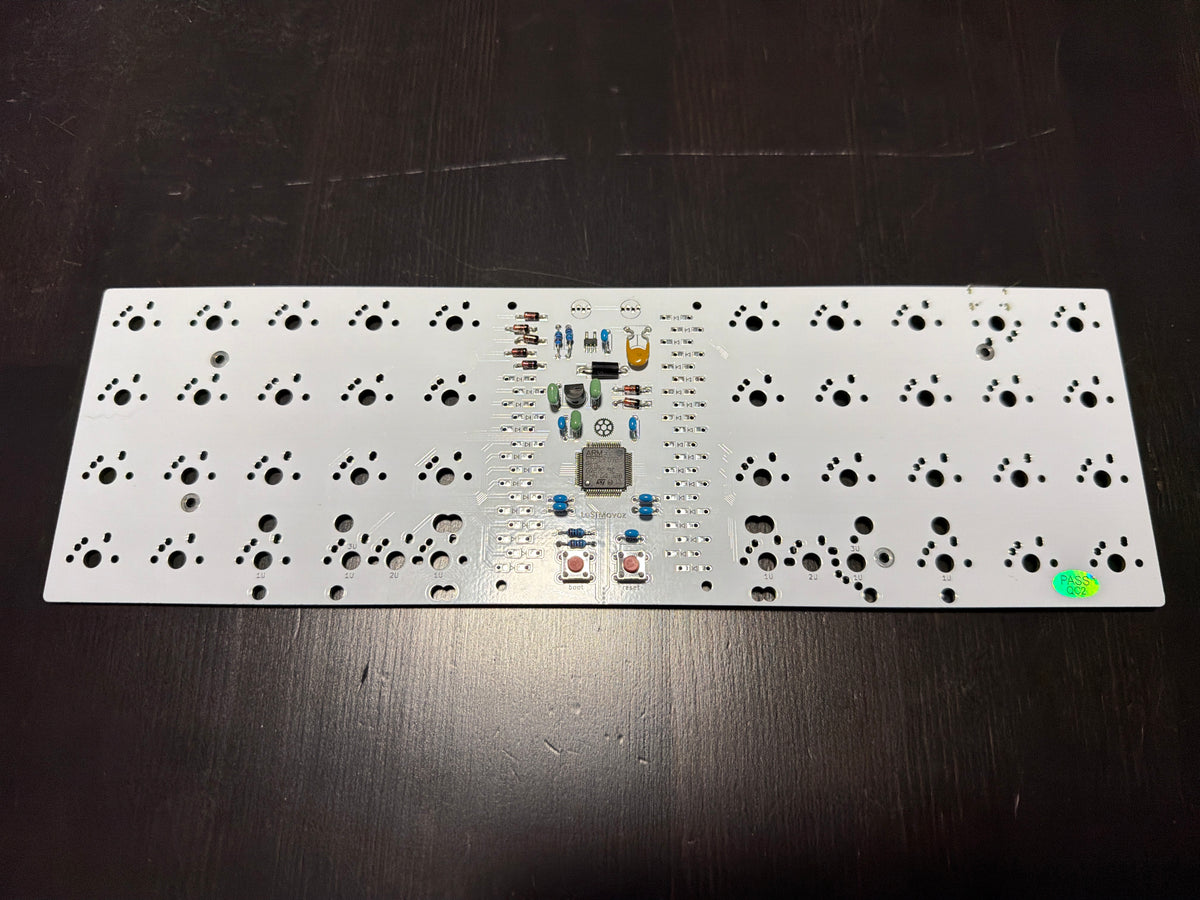

This is a bare PCB with only the chip, and USB pre soldered. It includes all the other components needed to solder/build your LeSTMovoz.

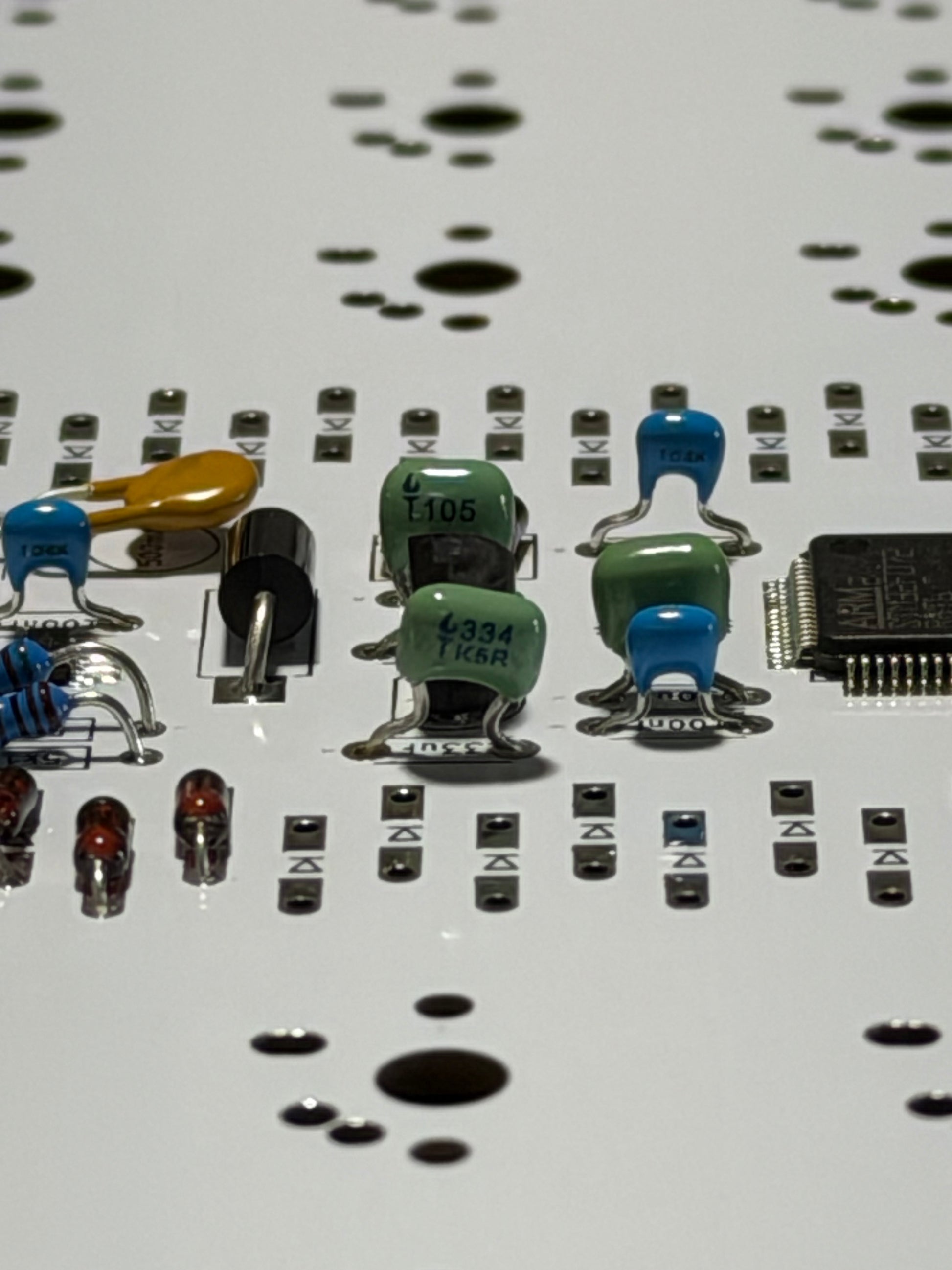

Refer to the pictures for diode placement. Note the GREEN resistors. The one with the labeled with a 334 on it goes to the left of the half circle resistors. The one labeled 105 goes to the right. The one labeled 106 goes below.

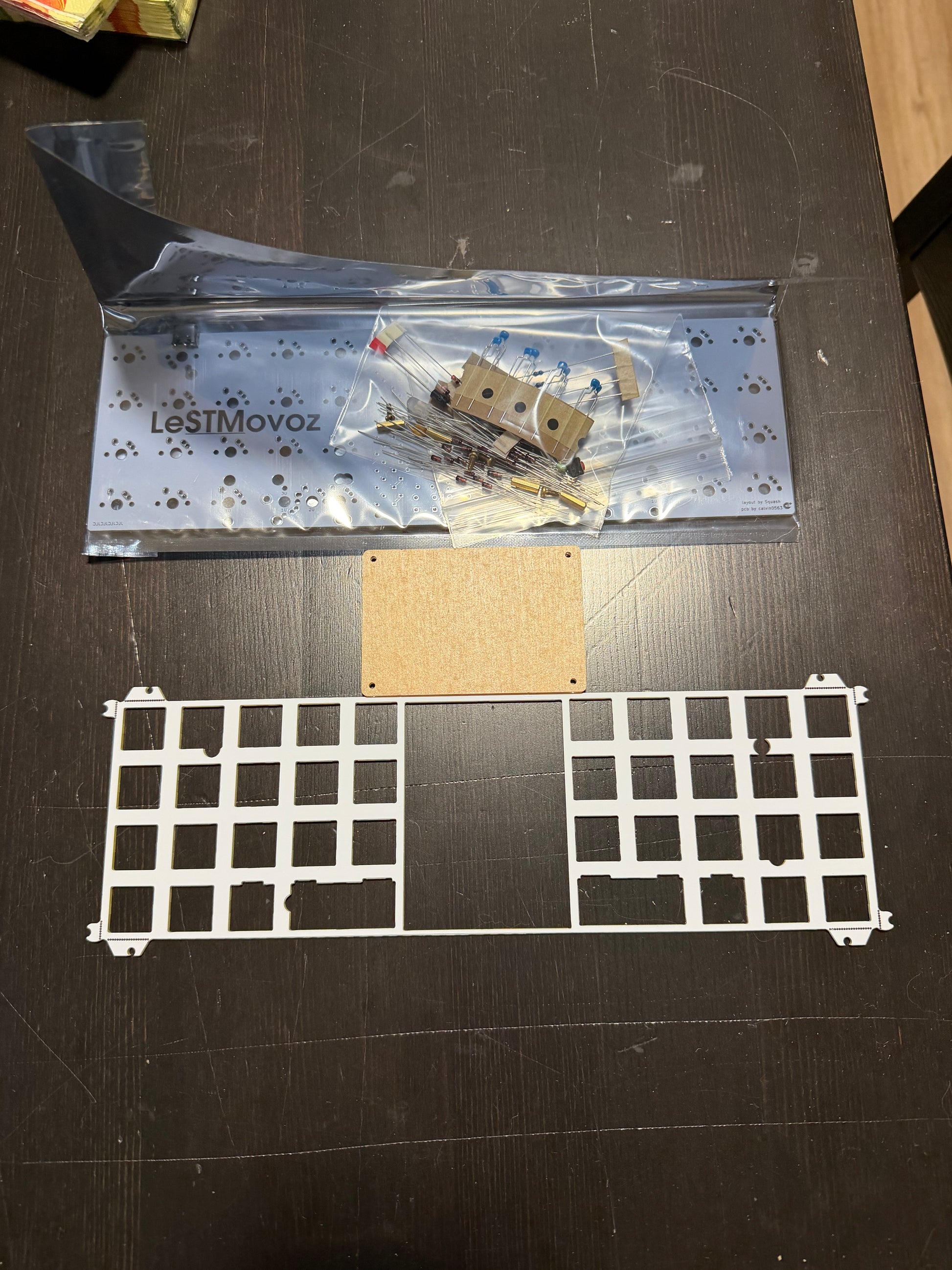

No case included these do come with a standard FR4 plate and an acrylic window to cover the middle components (not pictured)

These units are not flashed but use the same firmware as prior revisions and can be found on the vial-qmk repo here.

Designed by calvin0563: https://github.com/calvin-mcd/LeSTMovoz/tree/main
